Product Details

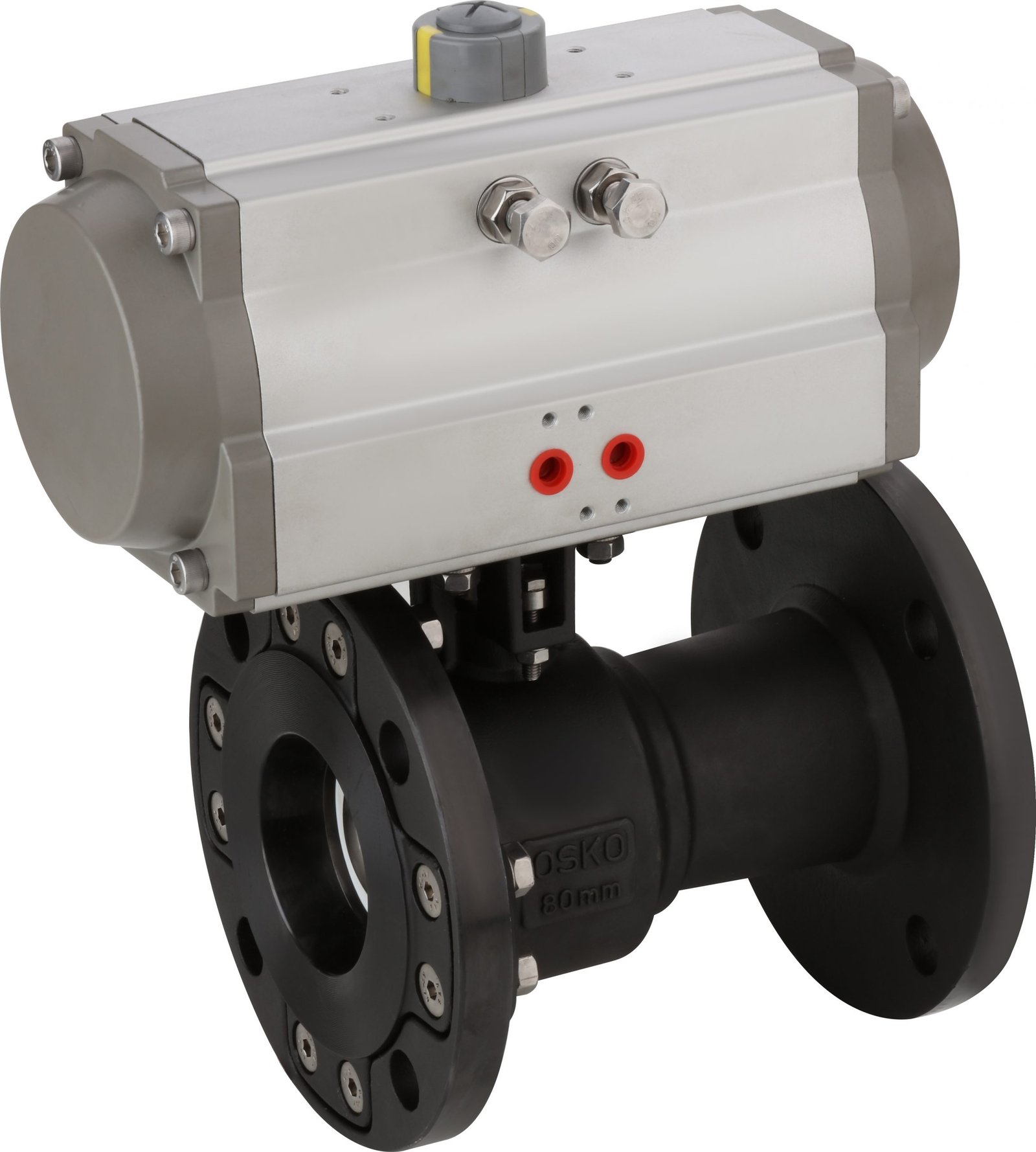

Actuated Ball Valves

(0 Review)

Size Range: 15mm to 100mm

Normative Standard Design Standard: IS/ISO 17292 | BS5351

Testing Standard: API 598 | IS/ISO 17292

Face to Face: As per ASME B16.10 Pressure Rating 150# End connection Screwed End | Socket Weld End | Flanged End.

Materials Body: WCB, CF8, CF8M, Super Duplex, etc

Seat: PTFE , RPTFE, CFT, GFT, PEEK etc Operation Pneumatically Actuated, Electrically Actuated (Motorized) Acutation Varients Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches

Salient Features / Benefit

Full Bore
In Cast ISO Mounting Pad
Anti Blow out Stem
Push Type Gland
Floating Ball Type
Low Torque
