Product Details

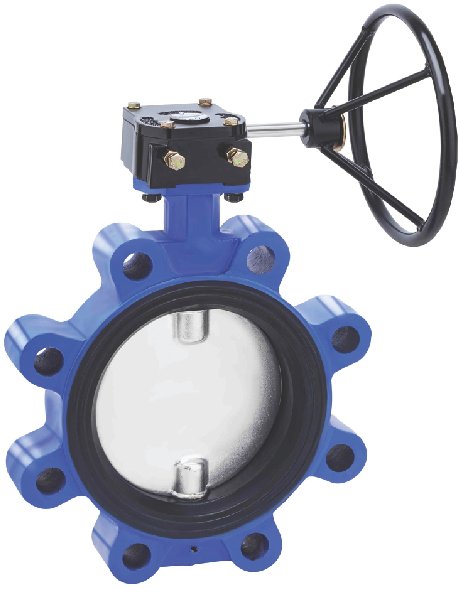

Lug type Butterfly Valves

(0 Review)

Size Range: 40mm to 1000mm

Normative Standard

Design Standard:	IS/ISO 13095 \| API609 \| BS5155
Testing Standard:	API 598 \| IS/ISO 13095
Face to Face:	As per IS/ISO 13095 \| API609 \| BS5155

Pressure Rating

PN 10 | PN 16

End Connection

Lug to suite ANSI 150 Class, BS Table D & E | DIN PN 10 & 16

Materials

Body:	CI, SGI/DI, WCB, CF8, CF8M, Super Duplex, etc
Disc:	SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Seat:	EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.

Operation

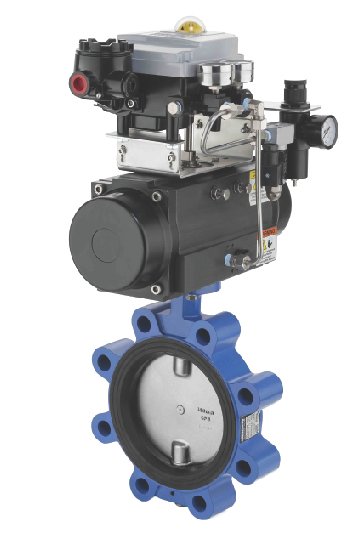

MS, SG, Aluminium, Stainless Steel Handle | Pneumatically Actuated | Electrically Actuted (Motorised) | Limit & Tamper Switch Fitted

Salient Features / Benefit

Low torque resulting in low wear & long life
Molded & Replaceable seat options available
Easy to assemble & dismantle in replaceable seat
Top flange as per ISO 5211 for easy actuation
Full Bore gives high CV
